Product Description

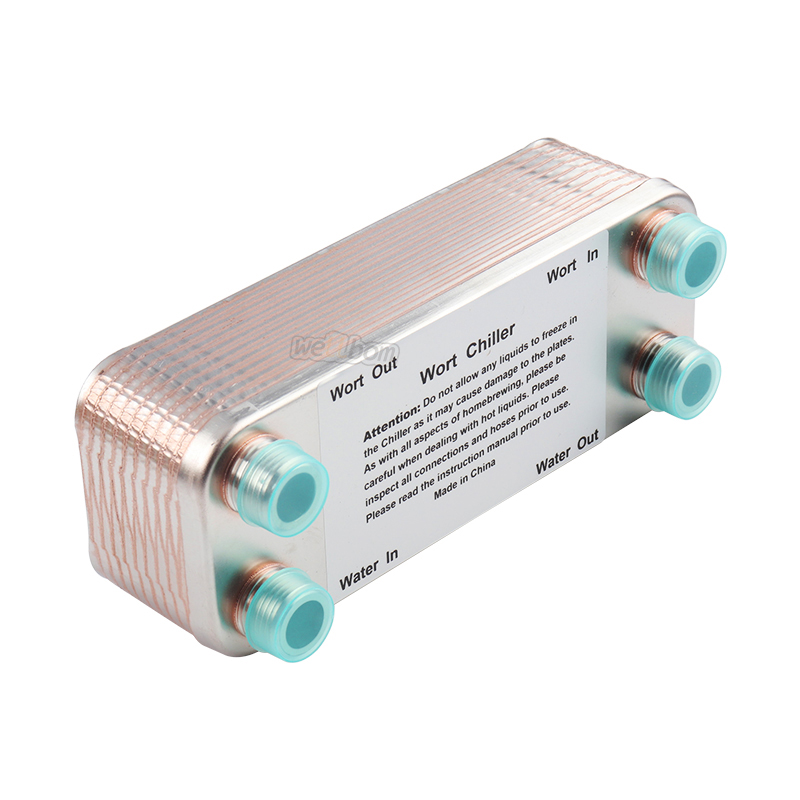

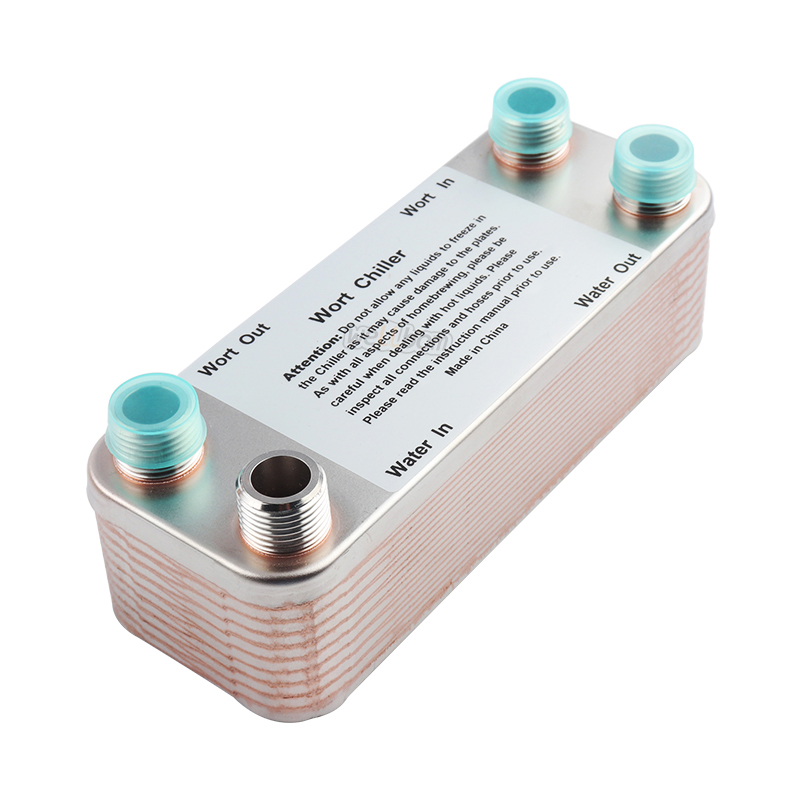

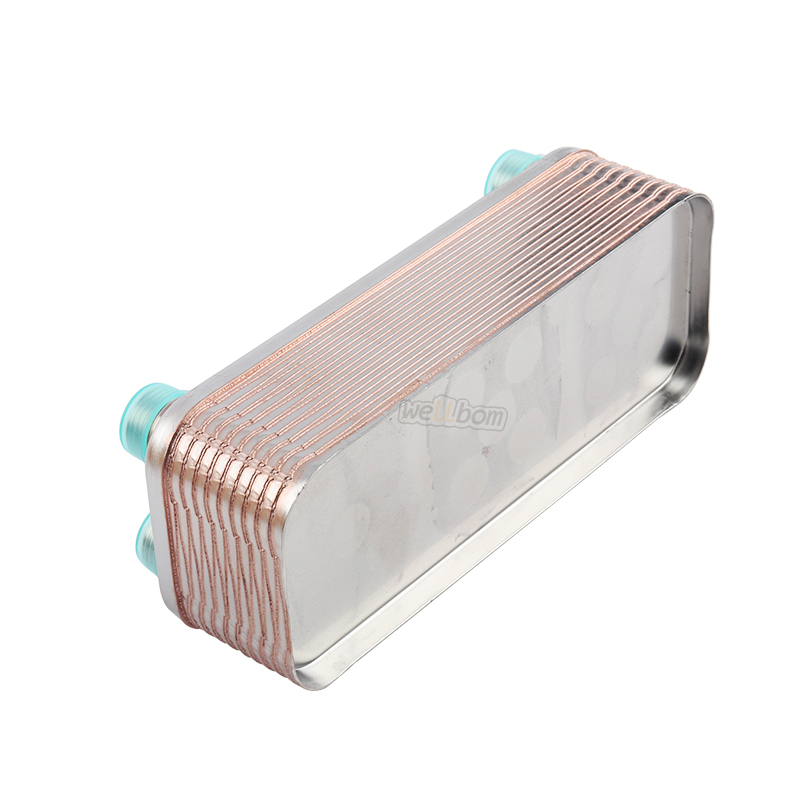

The New stainless steel wort plate chiller is a highly-efficient device. This chiller is made of 20 plates of 304 stainless steel that have been brazed together with pure copper in an oxygen-free furnace. 4*1/2'' NPT
Heat Transfer Area/plate: 0.012m2(0.14ft2)
Thickness of plates: 0.3 mm(0.0118")
Max Flow Rate: 66.6L/min(17.6gpm)
Design Pressure:1.0 Mpa(145 psi)
Test Pressure: 2.0 Mpa(290 psi)
Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hour
