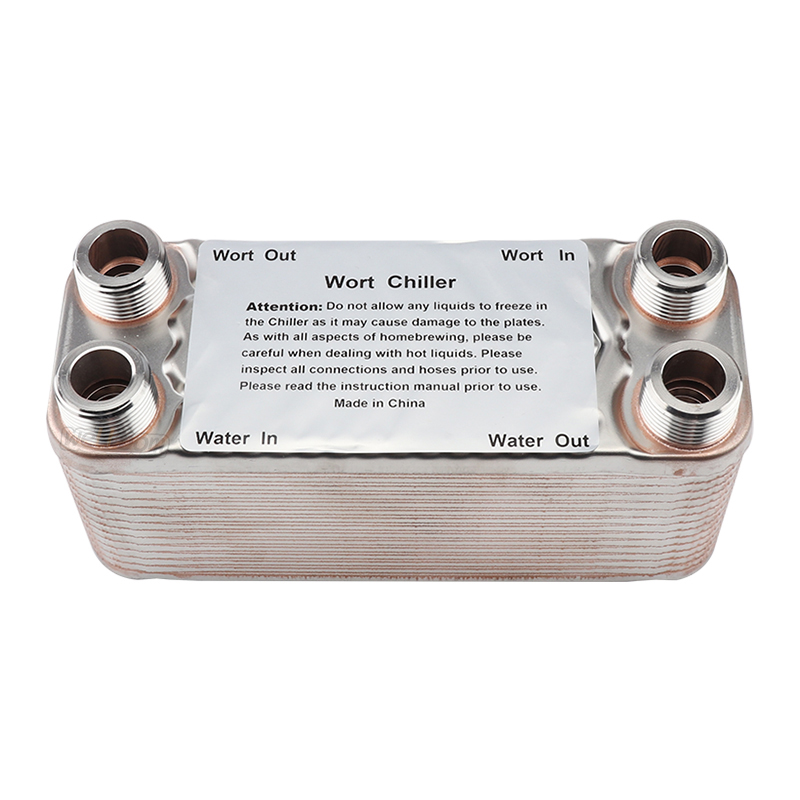

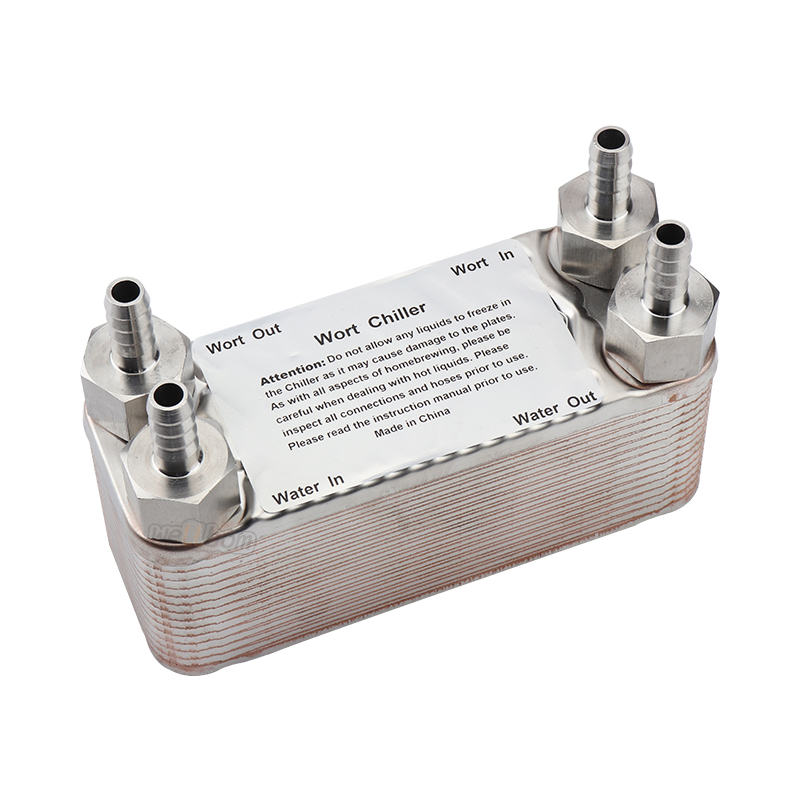

30 Plate Heat exchanger Stainless Plate Wort Chiller Brewing Chiller with Hose Barb 3/4" NPT x 13mm Barb

Product Descriptions:

The New stainless steel wort plate chiller is a highly-efficient device. This chiller is made of 30 plates of 304 stainless steelthat have been brazed together with pure copper in an oxygen-free furnace.All the port are with 3/4" NPT hose thread.

Features:

304 Stainless Steel Plates with 99.9+% Copper Brazing

Good Performance Economy Heat Exchanger

Recommended Max Water Flow Rate: 15.5 gpm, Design Temperature: -195°C to +220°C (-319°F to 430°F)

Product Size: 7.5" x 2.9" x 2.92"(191 x 73 x 74.2 mm)

Heat Transfer Area/plate: 0.012m2(0.14ft2)

Thickness of plates: 0.3 mm(0.0118")

Max Flow Rate: 66.6L/min(17.6gpm)

Design Pressure:1.0 Mpa(145 psi)

Test Pressure: 2.0 Mpa(290 psi)

Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hour)

Package Includes:

1 x 30 plate plate Chiller

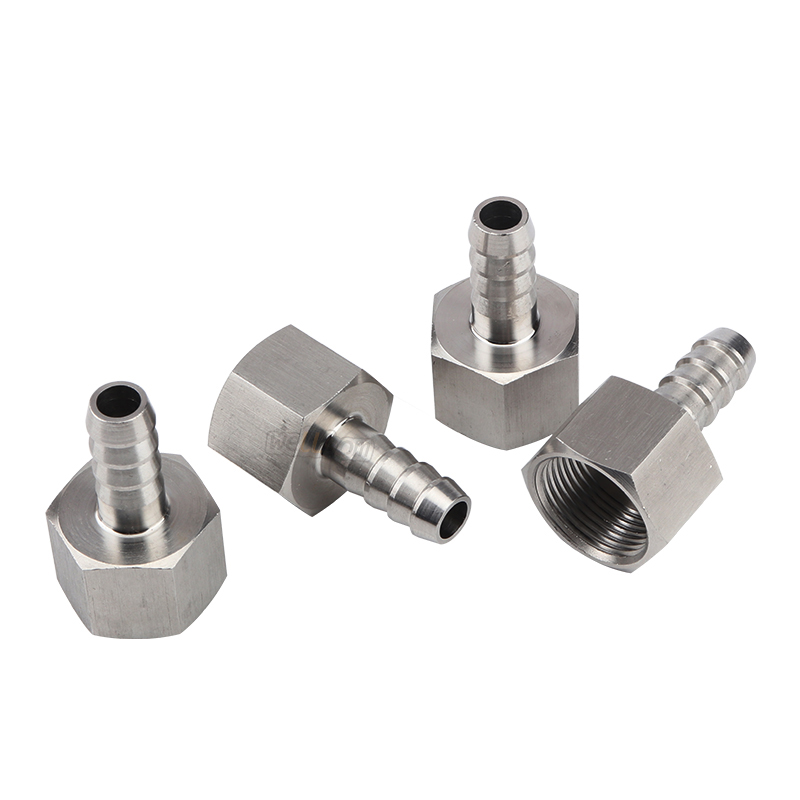

4 x hose barb
