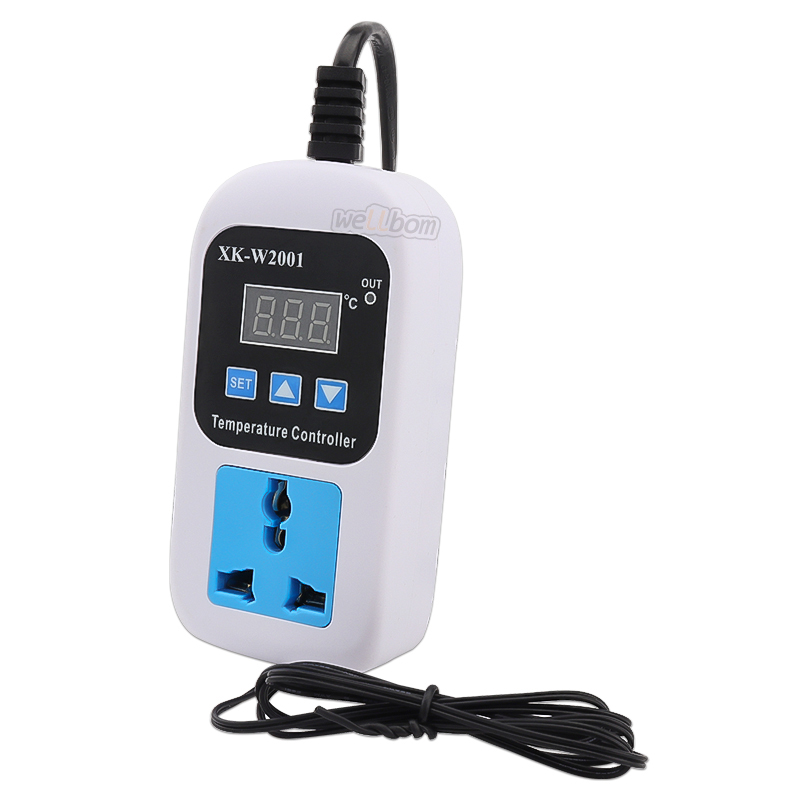

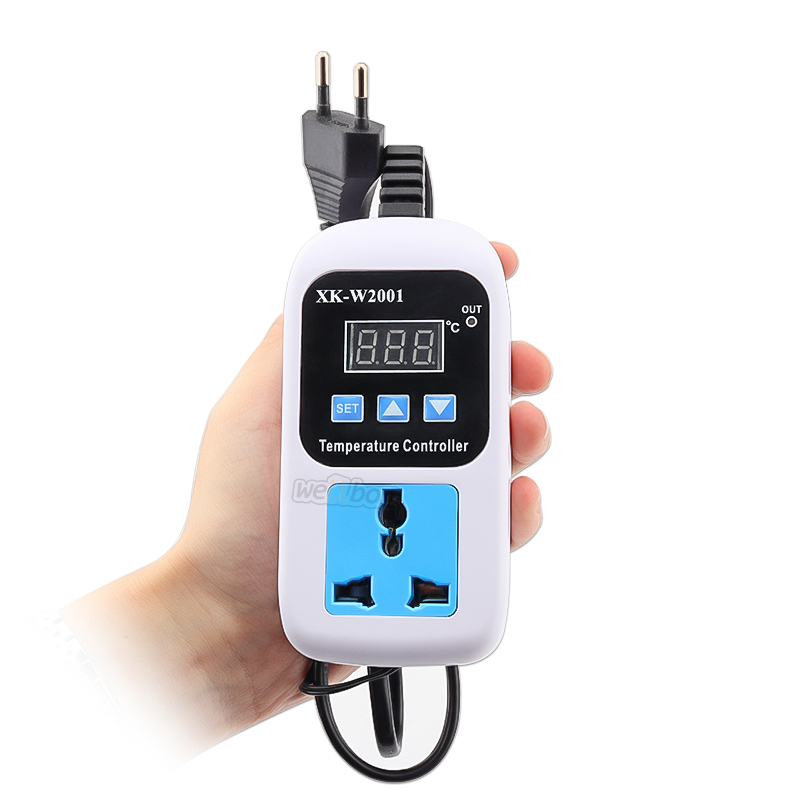

Digital LED Thermometer Temperature Controller Thermostat Control Microcomputer Delay start With Probe 110-220V 1500W

Product Description:

Specifications:

Temperature control range: -50℃~110℃

 Temperature measurement error: ±0.2℃

 Temperature control error : ±0.1℃

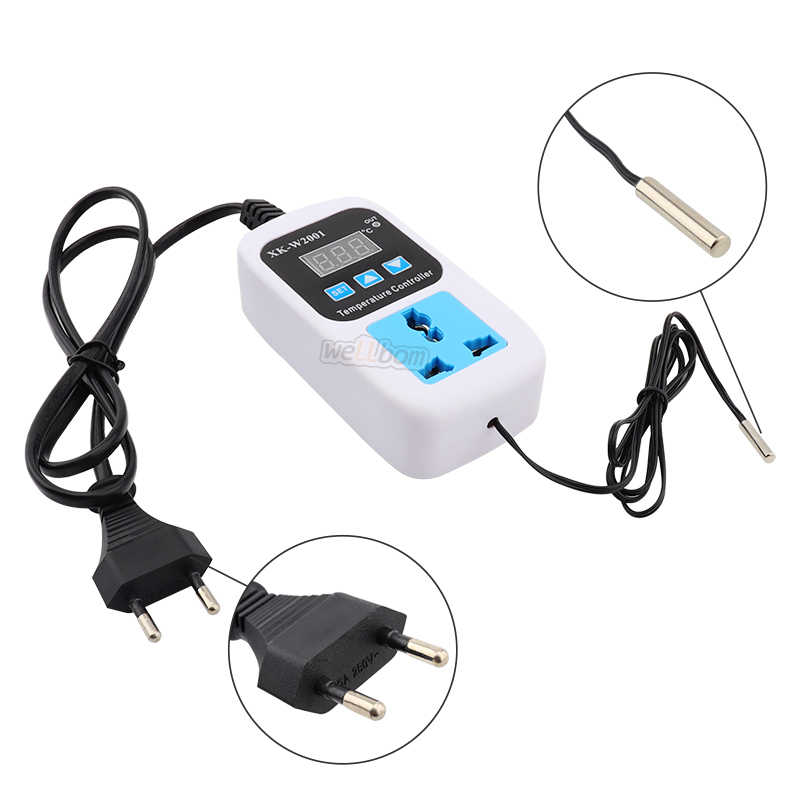

 Sensor model: NTC10K

 Sensor Long: 100CM

 Working Voltage: AC110V~220V

 Output Power: 1500W

 Output Current: Max 10A

 Size: 120*59*30mm

 Working Type: Direct output (Output Voltage =Input Voltage)

Power Supply Plug : EU  Plug

How to restore the factory seting

1- When connect to power supply, press the Up and Down buttons at the same time moew than 3s,display show 888

2- If display show LLL,means the sensor fault, need check this sensor

3- The display  show HHH , mean Test Temperature more than measurement range

P0: set start temperature:

Press the setting buttom, enter the internal menu,the default display,for the P0, and then click the settings button, use and and down buttons to set the starting temperature

P1 : Set stop temperature:

Press the setting buttom, enter the internal menu,the default display,for the P0,  use and and down buttons  change to P1,and then click the settings button, use and and down buttons to set the starting temperature

P2:set temperature calibration

Press the setting buttom, enter the internal menu,the default display,for the P0,  use and and down buttons  change to P2,and then click the settings button, use and and down buttons to set temperature calibration

when you setting, if detection of temperature is grater than  the actual temperature of 0.5C, then need setting the calibration temperature is 0.5C

when you setting, if detection of temperature is smaller than  the actual temperature of 1C, then need setting the calibration temperature is 1C

P3 : set delay start

Press the setting buttom, enter the internal menu,use and and down buttons change to P3,press set button again,use and and down buttons to set delay time(minutes)
