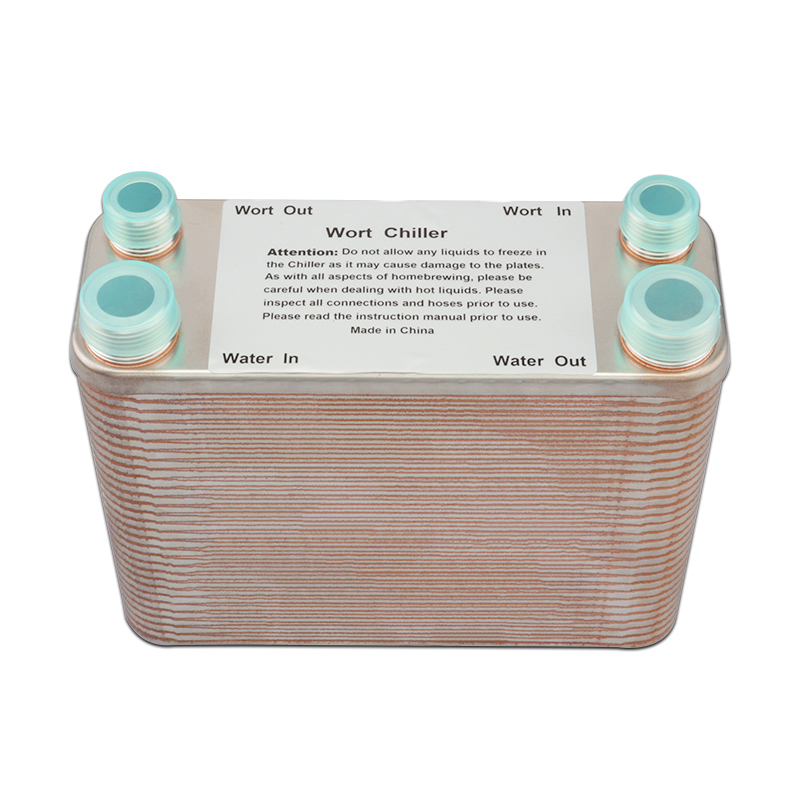

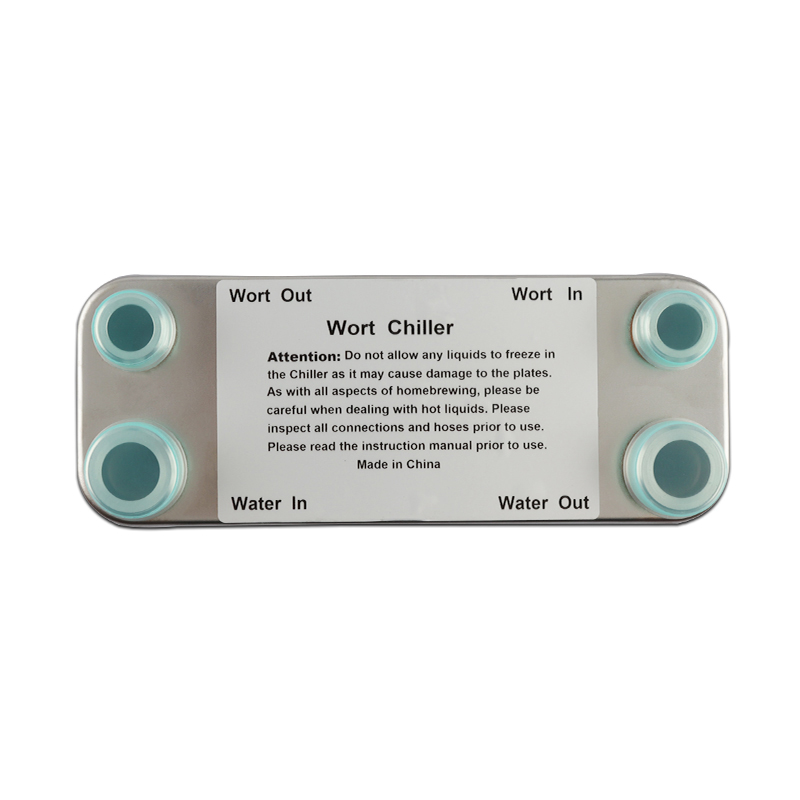

Home Brewing 60 Plates Heat Exchanger Beer Wort Chiller Cooler 304 Stainless Steel 1/2"NPT X 3/4" NPT

Product Descriptions:

The New stainless steel wort plate chiller is a highly-efficient device.

This chiller is made of 60 plates of  304 stainless steel that have been brazed together with pure copper in an oxygen-free furnace.

There has two  1/2'' NPT garden hose thread

there has two 3/4'' NPT garden hose thread

the water Out/in 1/2'' NPT Theaded

the Wort Out/in 3/4''  NPT Threaded

Application:Home Brew Wort Chiller,Famliy Hot Water supply

Plates Number:60

Heat Transfer Area/plate: 0.028 m2(0.30 ft2)

Thickness of One Plate:0.25-0.35mm

Max Flowrate:12 m3/H

The Maximum Pressure: 1.6Mpa(228 PSI)

Refrigeration Capacity: 12 KW(3516 BTU/hour)

Working Temperature:-160 ℃ to + 185 ℃

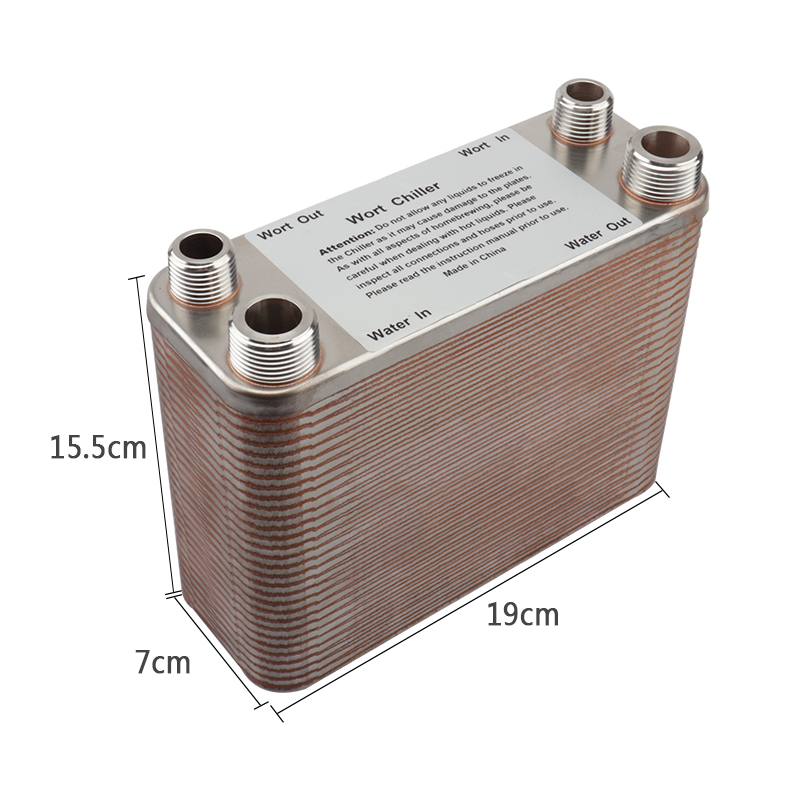

Detail size:

Length: 19cm

Wideth: 7cm

High: 15.5cm

there will little 1-2cm error for the size, as it measured by hand.pls kindly check.

Package Includes:

1 x 60 plate Wort Chiller
