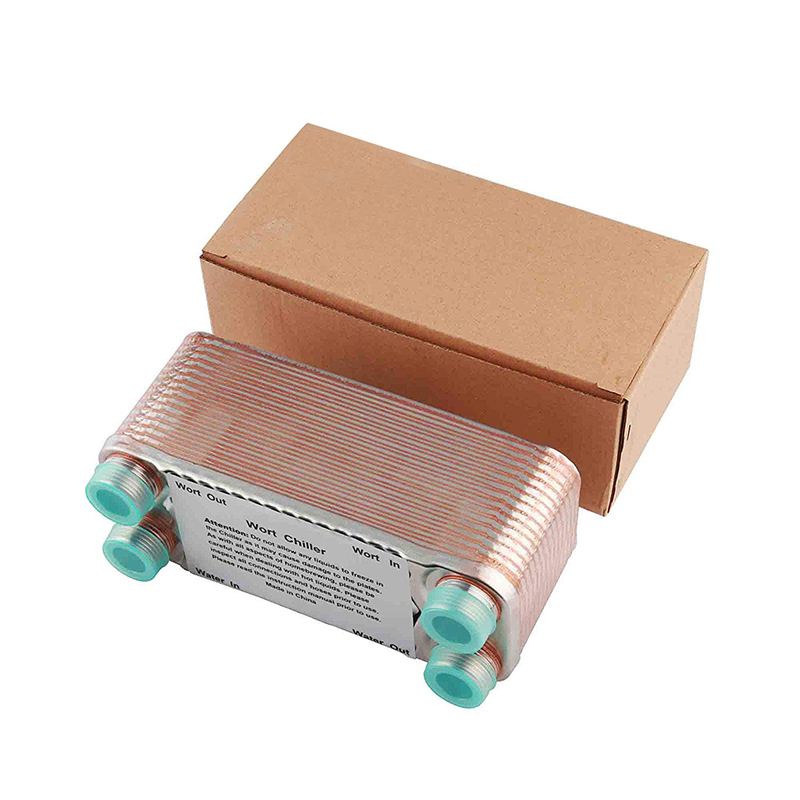

New 30 Plate Heat Exchanger Stainless Plate Wort Chiller Homebrew Beer Plate Brewing Chiller with 3/4 NPT Hose Garben

Wort chillers cool your wort fast before you pitch your yeast and helps keep your wort free from contamination.

The faster it cools the clearer and tastier your homebrew can be.Cold water is run through the coils of the Immersion wort chillers to cool the wort.

It will work for 10 gallon batch but you’ll have to adjust your flow rates depending on your tap water temp.

It takes about 20 mins to chill a 10 gallon batch to 70F with 55 degree supply water. Also make sure you have very clean wort.

Any hop residue or grain husks WILL plug this chiller.

Features:

304 Stainless Steel Plates with 99.9+% Copper Brazing

Good Performance Economy Heat Exchanger

Heat Transfer Area/plate: 0.012m2(0.14ft2)

Thickness of plates: 0.3 mm(0.0118")

Max Flow Rate: 66.6L/min(17.6gpm)

Design Pressure:1.0 Mpa(145 psi)

Test Pressure: 2.0 Mpa(290 psi)

Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hour)

Recommended Max Water Flow Rate: 15.5 gpm, Design Temperature: -195°C to +220°C (-319°F to 430°F)

Product Size: 7.5" x 2.9" x 2.92"(191 x 73 x 74.2 mm)

Package Includes:

1 x 30 plate plate Chiller

Warm Tips:

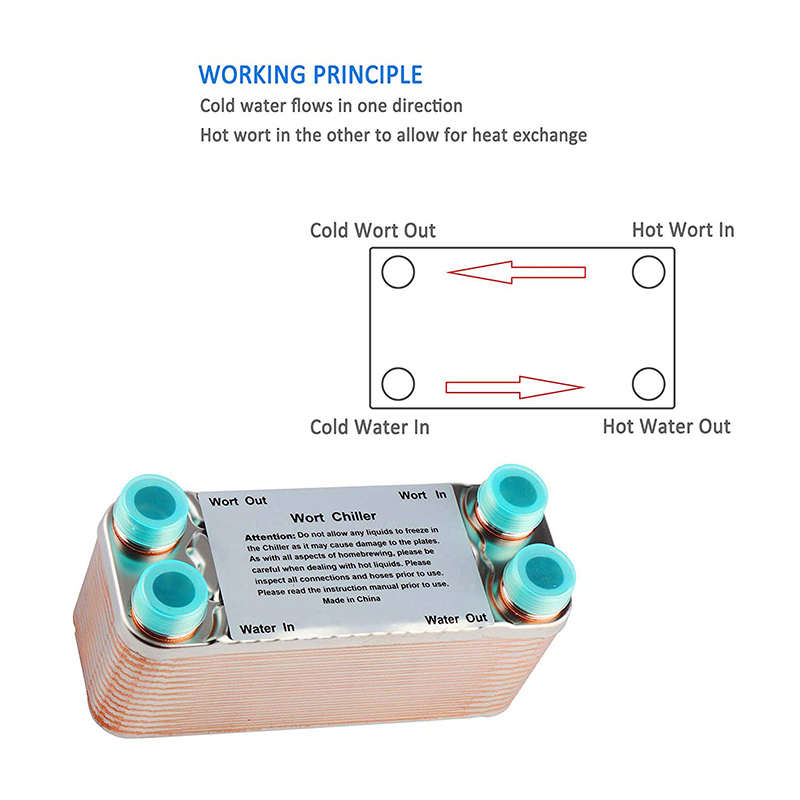

1.The correct exchange and flow bewteen wort and cold water that can achieve efficient cooling effect

2.. Do not freeze

3. Never use harsh cleaning chemicals, abrasives, or bleach.
