Plate Heat Exchanger Stainless Steel Plate Wort Chiller - 30 plates Brewing Chiller,with 1/2" barb Top Quality

Product Description:

Recommended Max Water Flow Rate: 15.5 gpm, Design Temperature: -195°C to +220°C (-319°F to 430°F)

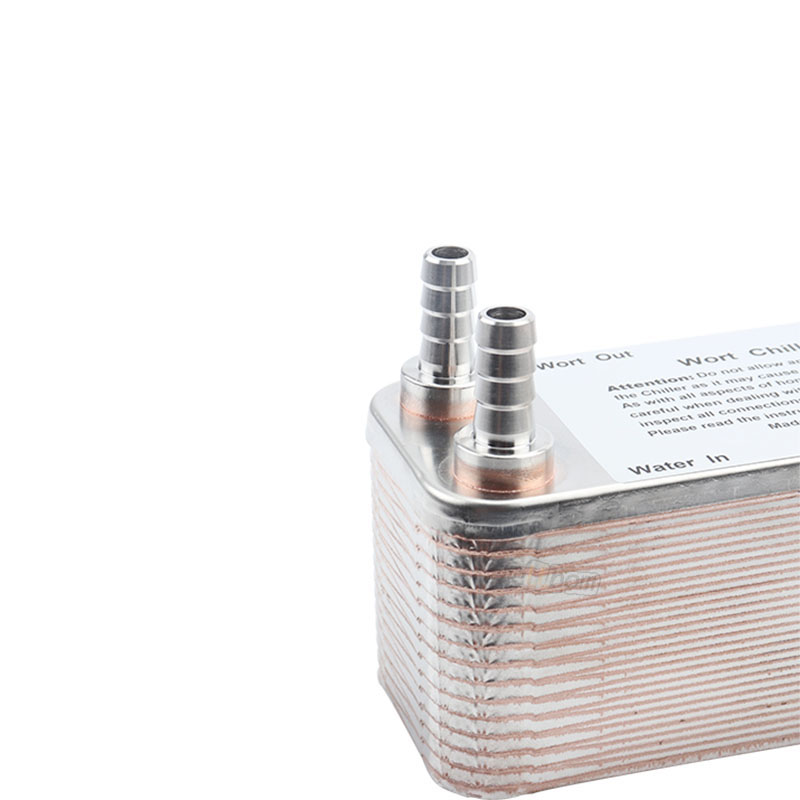

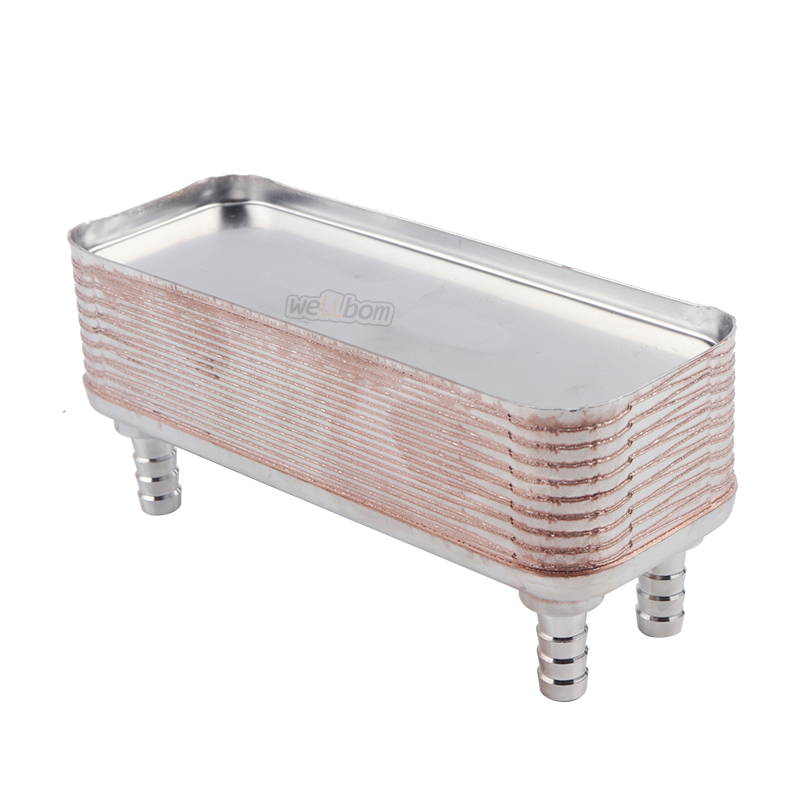

The New stainless steel wort plate chiller is a highly-efficient device. This chiller is made of 30 plates of 304 stainless steel that have been brazed together with pure copper in an oxygen-free furnace.Four ports are with  1/2" barb Fitting .

Specifications:

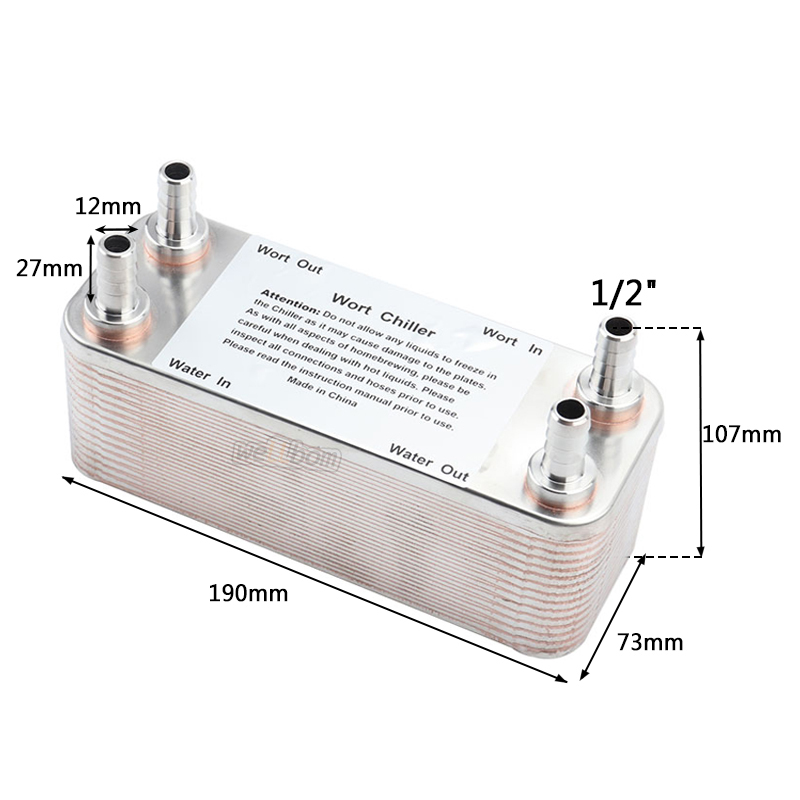

Product Size: 7.5" x 2.9" x 2.92"(191 x 73 x 74.2 mm)

Heat Transfer Area/plate: 0.012m2(0.14ft2)

Thickness of plates: 0.3 mm(0.0118")

Max Flow Rate: 66.6L/min(17.6gpm)

Design Pressure:1.0 Mpa(145 psi)

Test Pressure: 2.0 Mpa(290 psi)

Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hour)
